75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB

  • 75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB
  • 75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB
  • 75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB
Miejsce pochodzenia Chiny
Nazwa handlowa OEM
Orzecznictwo CE
Numer modelu CHIC-50A
Minimalne zamówienie 500
Cena USD 40-45
Szczegóły pakowania wielkość opakowania (dł. × szer. × wys.) ： 1300 mm × 850 mm × 1210 mm
Czas dostawy 7 dni
Możliwość Supply 500 sztuk / dzień

Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Imię 75kw 100hp CHIC-100A napędzana bezpośrednio używana obrotowa sprężarka śrubowa Dostawa lotnicza 13,0 m³ / min
Elektryczność Trójfazowe 380/60 lub 440/60 (V // Hz) Nacisk 8bar
Poziom hałasu 75 ± 2dB moc 100HP / 75KW
N.weight 1500 kg kolor niebieski
Podkreślić

75kw portable screw compressor

,

75dB portable screw compressor

,

75dB industrial screw compressor
Zostaw wiadomość
opis produktu







Cooler fan

High efficirency and learge air volume , greatly lower the temperature , prolong the lubricating oil change period

EXHAUST

The exhqaust from the com-pressor is directly discharged to the tank which reduces the intermediate connecting pipe and effectively saves space

High performance frequency converter

Makes the operation more stable and carrying out real-time vetor calculation according to different air delivery

PLC

7-inch color screen ,touch operation be equipped with active protection alarming , maintenance reminding and automatic 24-hour unattended operation

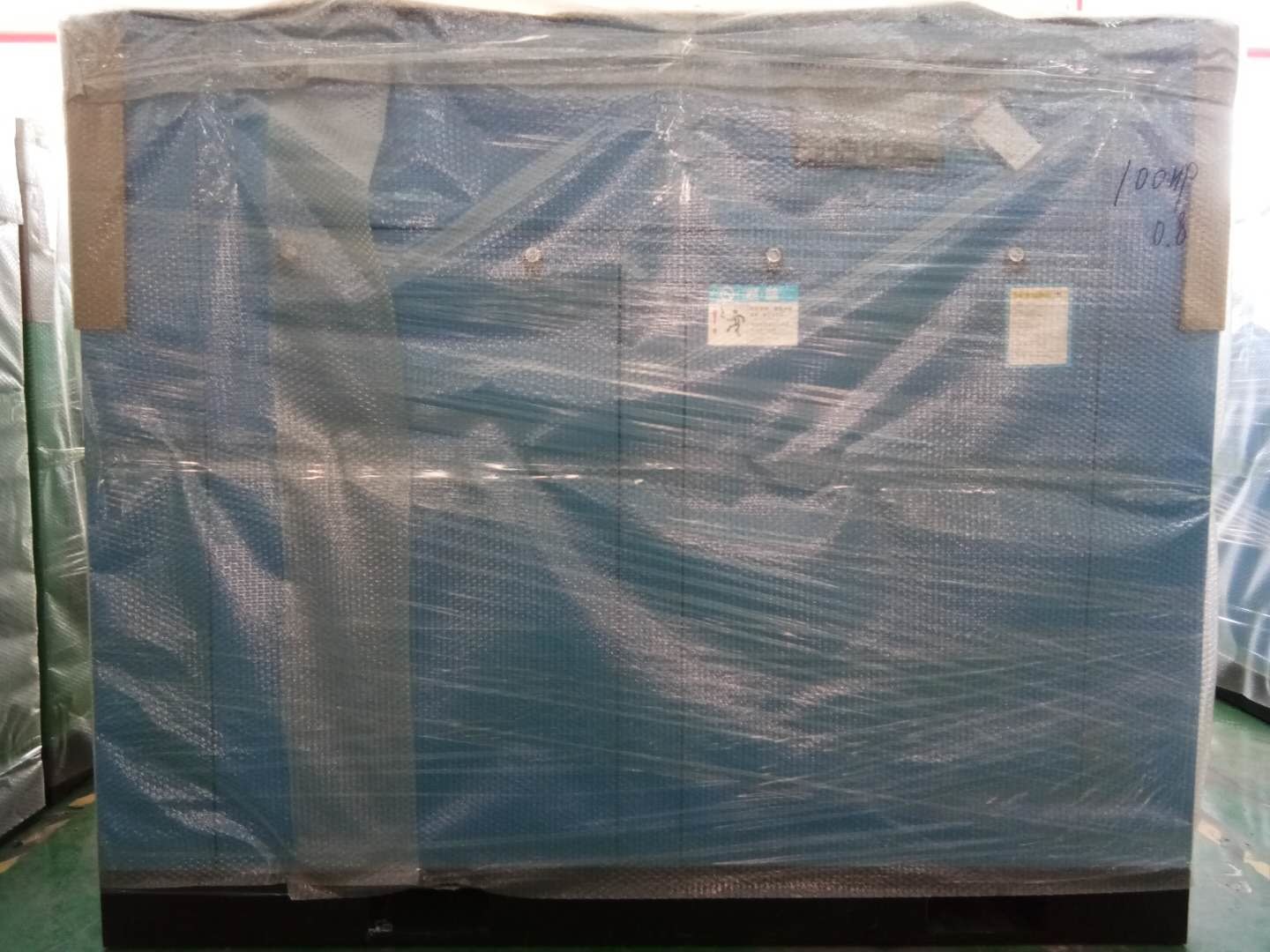

75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB 0

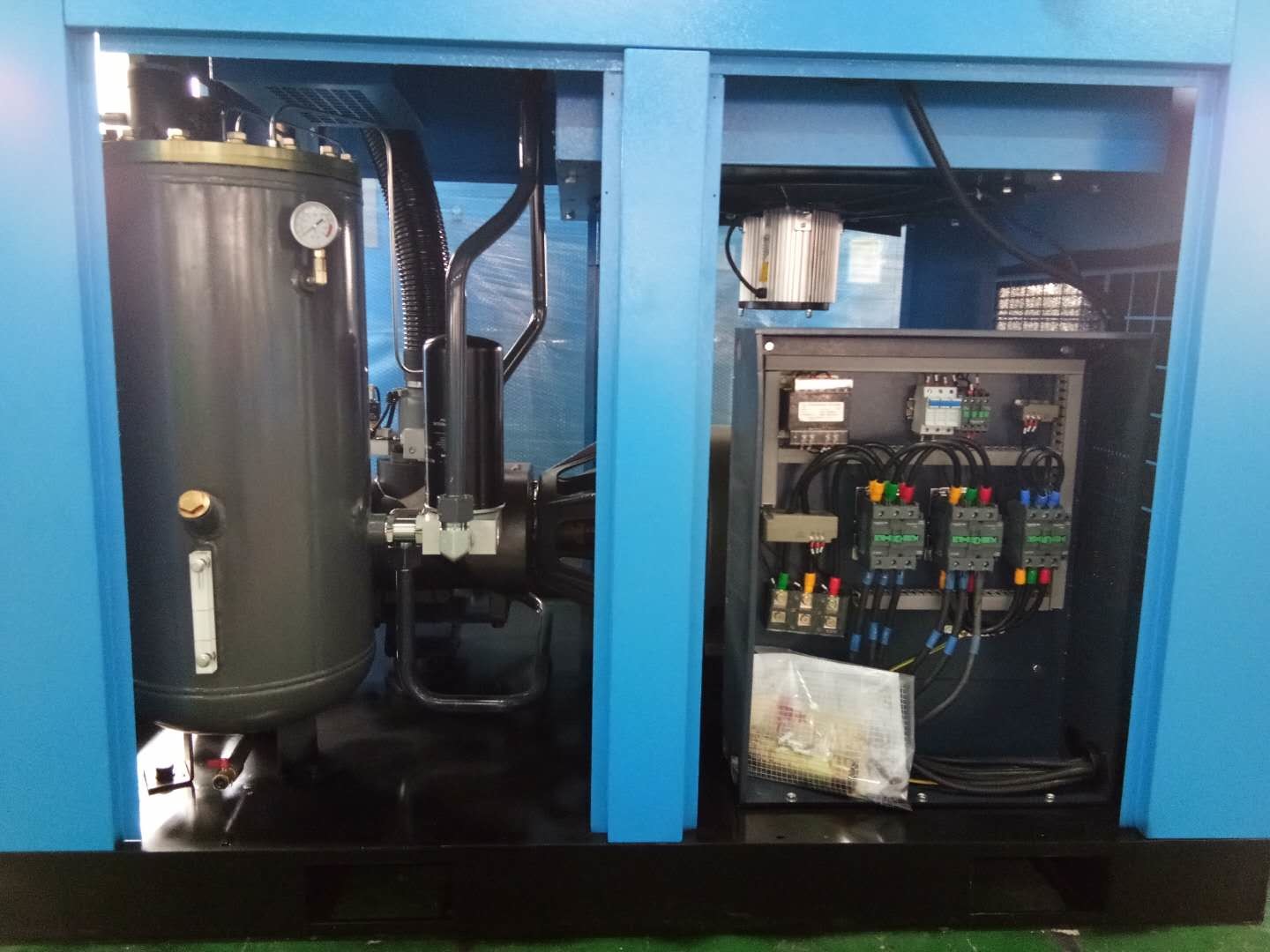

75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB 1





Technical parameters



Model CHIC-100A
Power 100HP/75KW
FAD: (M3/MIN) 13.0
Pressure 8 bar
Cooling Air-cooling
Lubricant 36L
Noise level 68±2dB
Drive method Direct drive type
Discharge temperature Environment Temp+15℃-18℃
Electricity Three phase 220/60 or 440/60 (V//Hz)
Starting method Y-△ starter
Air outlet: Pipe diameter(inch)

G2″
Oil content of air <2ppm
Dimension 1150MM*1550MM*1660MM
Net weight 1500KGS



Packaging & Shipping



Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo

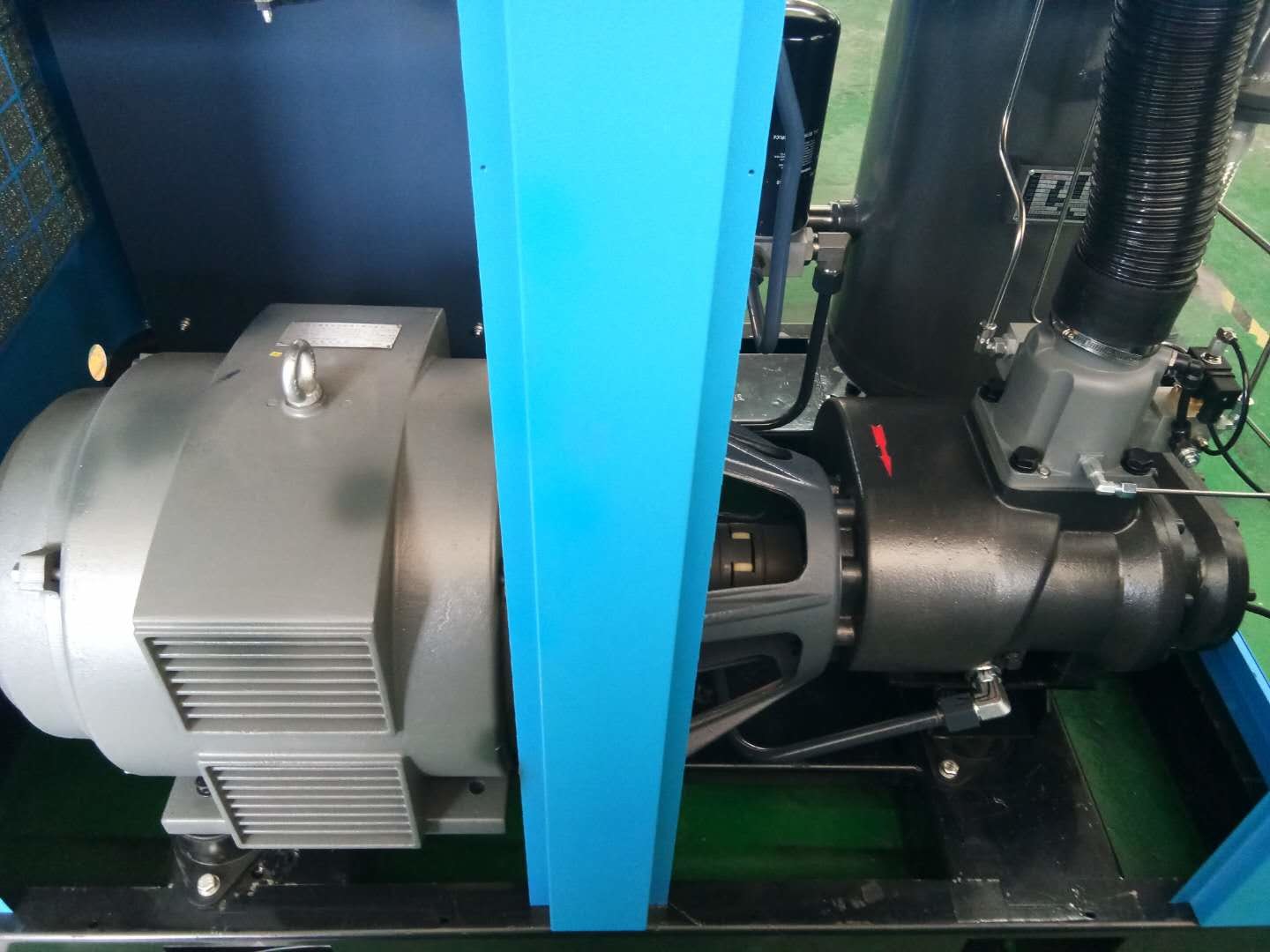

75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB 2

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.

Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager

Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
