45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs

  • 45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs
  • 45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs
  • 45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs
Miejsce pochodzenia Chiny
Nazwa handlowa OEM
Orzecznictwo CE
Numer modelu CHIC-60A
Minimalne zamówienie 500
Cena USD 40-45
Szczegóły pakowania wielkość opakowania (dł. × szer. × wys.) ： 1000 mm × 1450 mm × 1470 mm
Czas dostawy 7 dni
Możliwość Supply 500 sztuk / dzień

Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Imię 45kw 60hp CHIC-60A z napędem bezpośrednim Używane obrotowa sprężarka śrubowa 8Bar Dostawa lotnicza 7,5 m³ / min
Elektryczność Trójfazowe 380/60 lub 440/60 (V // Hz) Nacisk 8bar
Poziom hałasu 70 ± 2dB moc 60HP / 45KW
N.weight 900 kg kolor niebieski
Podkreślić

45kw Screw Air Compressor

,

25UM Screw Air Compressor

,

45kw helical screw compressor
Zostaw wiadomość
opis produktu





OIL &GAS SEPARATOR

Makes the oil content less than or equal to 3ppm

Oil FILTER

The filter fineness is 25UM , which can guarantee the clean lubricating oil supply to the main system and improve the service life of the air end

REFRIGERATED AIR DRYER

High efficiency energy saving with high presicion pressure gauge

Permanent Magnet synchronous motor

NO electirc excitation no fundamental wave iron , less copper loss and less calorific value whose efficiency is 5-12% higher than that of the same capacity asynchronous motor

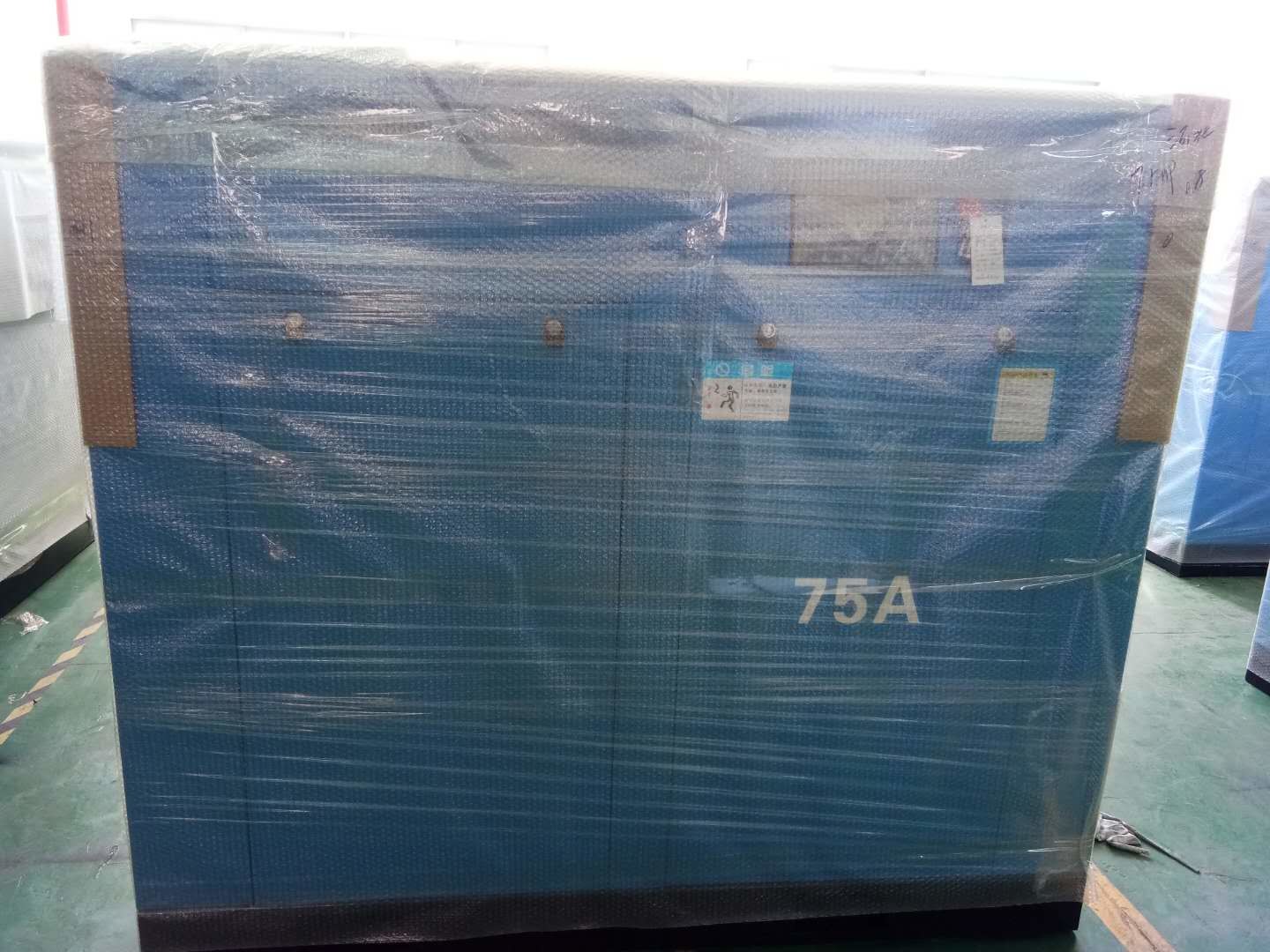

45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs 0

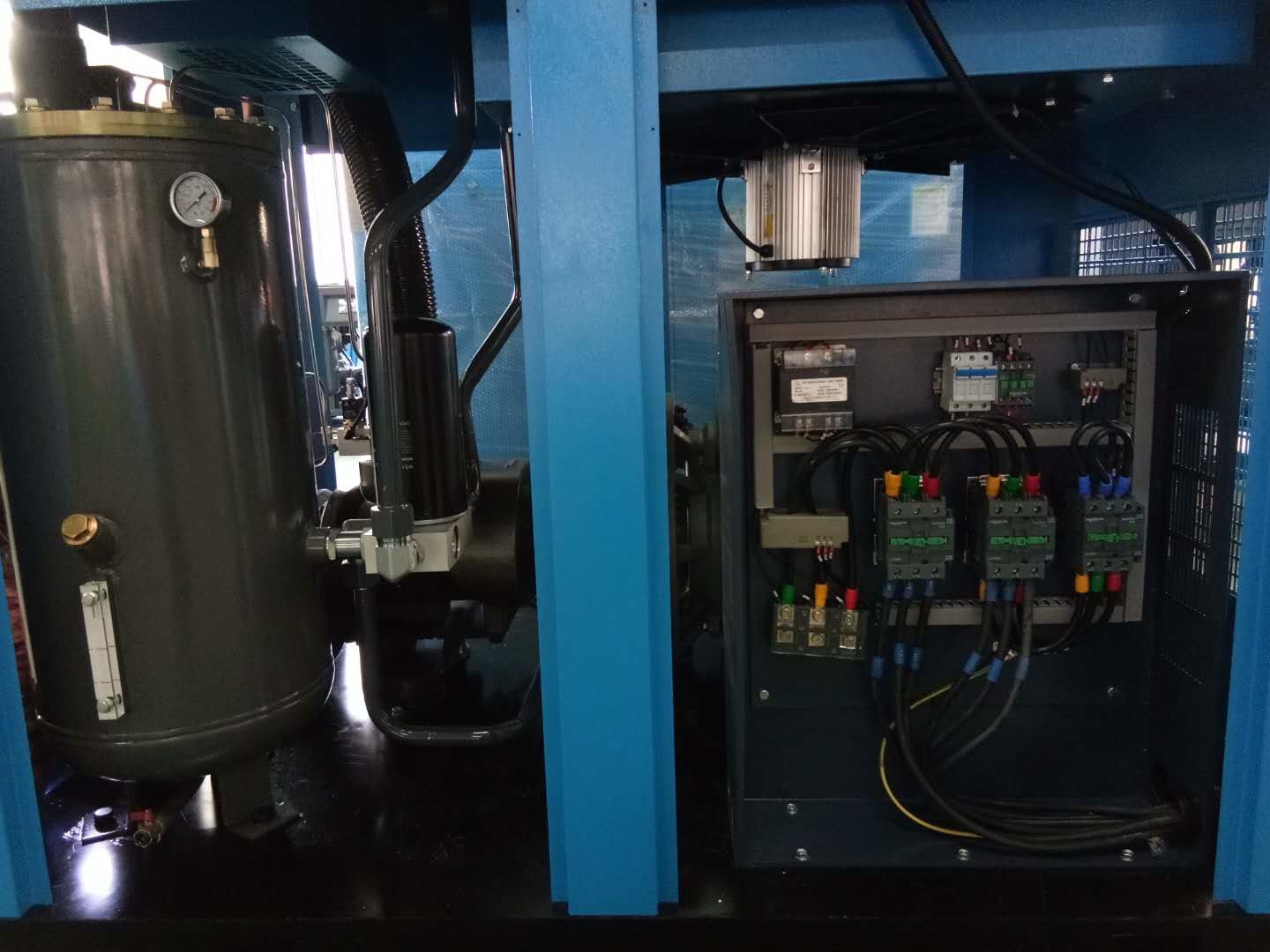

45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs 1





Technical parameters



Model CHIC-60A
Power 60HP/45KW
FAD: (M3/MIN) 7.5
Pressure 8 bar
Cooling Air-cooling
Lubricant 20L
Noise level 68±2dB
Drive method Direct drive type
Discharge temperature Environment Temp+15℃-18℃
Electricity Three phase 380/60 or 440/60 (V//Hz)
Starting method Y-△ starter
Air outlet: Pipe diameter(inch)

G1/2″
Oil content of air <2ppm
Dimension 1000MM*1450MM*1470MM
Net weight 900KGS



Packaging & Shipping



Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo

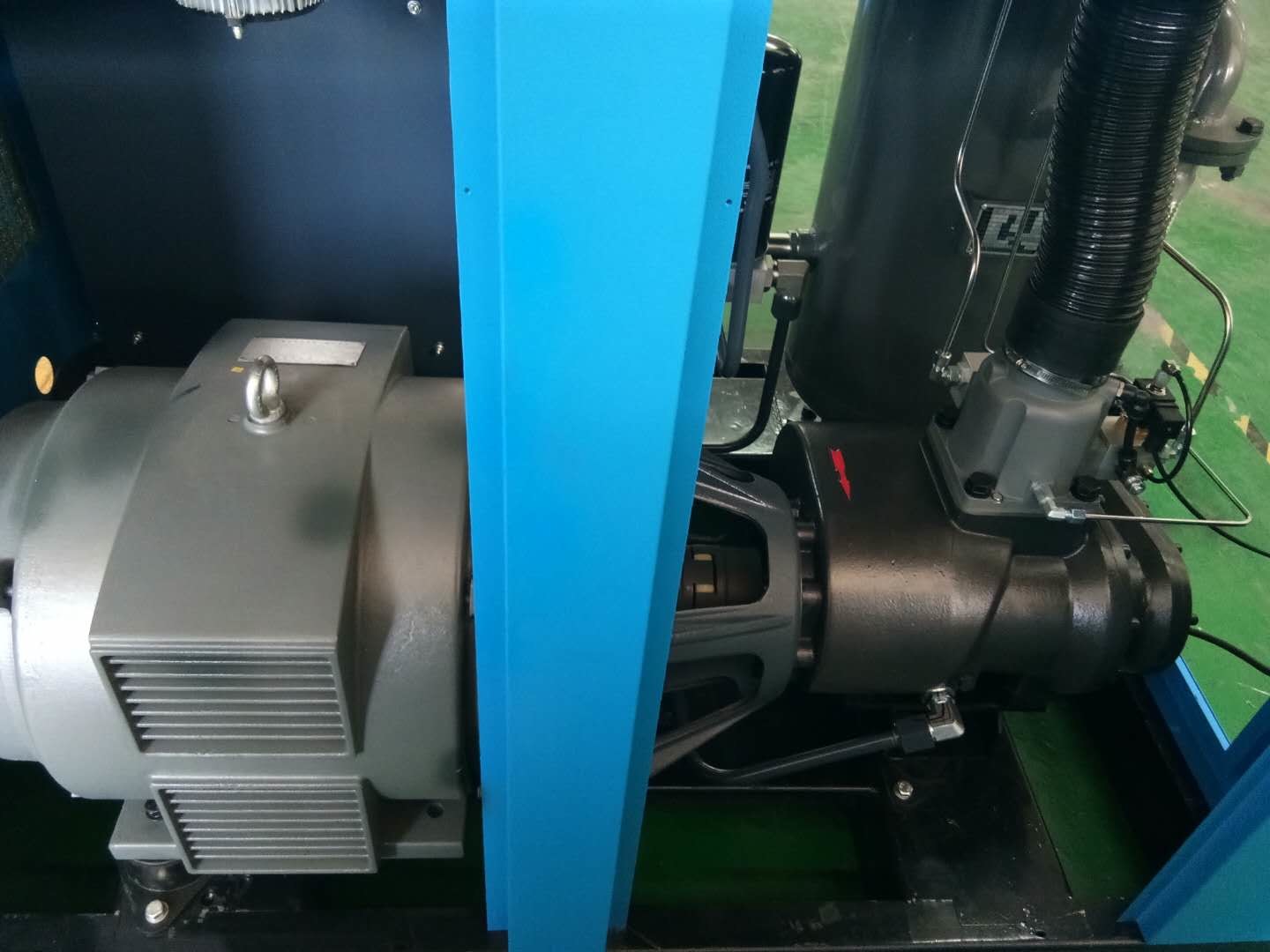

45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs 2

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.

Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager

Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
